ROMs
- Default ROM (from early versions),
- Second ROM,
- Hybrid ROMs (A/B variations of Second and Default ROMs, where A – waveforms from Default ROM and B – waveforms from new Second ROM)

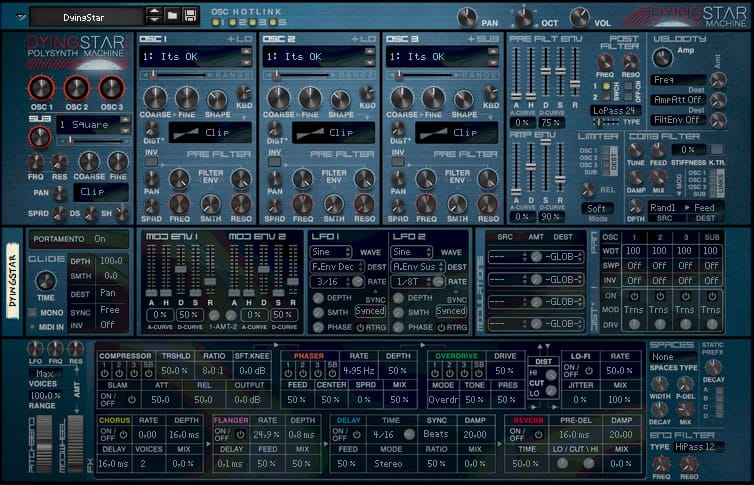

OSCs
- 1&2 Main Osc,
- Sub-osc,
- Ring,
- Noise.
Osc 1 & 2 analog waveforms (4 types with steps 2/4/8/16′): sine, triangle, sawooth, pulse plus wavetable groups (Leads, Pads, Drones, Samples).
Sub-osc contain 15 waveforms: sine, pulse, square with selection in 2 octaves and 9 wavetables.
Osc 1&2 and Sub-osc include
additional X7-Osc. This Oscillator module adds up to 7 detuned sawtooth waves with square wave as addition to selected waveform.
Ring & Noise Ring Osc Ring oscillators contain level control. Noise oscillator contain color knob
LFO
Osc 1&2 and Sub-osc has own LFO 1/2/3.
Its simple LFO with choice of waveform, rate, sync, retrigger and destination.
Filters
First 3 oscillators (1&2 plus Sub) contain 4-pole lowpass filters (LP24 – 24 dB/oct) with Cutoff, Resonance, Envelopes (Cut/Res) and Smooth knobs. First 3 oscillators (1&2 plus Sub) contain addition sections: Shaper, Distortion, Band, Spread, Haas, Pan.
Comb Filter 1/2/Sub oscillators and Ring Osc contain Comb Filters. CombFilter section with controllers located near Ring section. Comb Filter Link section contain links to activate Oscillators to CombFilter, and also LFO modulation links to CombFilter elements (Tune/Feed/Damp/Mix).
Spaces After all OSCs, signal routed to SPACES. There You can choose one from 30 creative FX-spaces.
Pre-FX / End-Filter sections contain selectable type of filters (6 types), On/Off button, Cutoff and Resonance knobs. Pre-FX filter provide signal from Mixer to FX-section.
End-Filter provide signal from FX-Section to Level output. As addition, Pre-FX section contain Long Verb and Verb impulse-elements with On/Off button.
Envelopes
Synthesizer include AHDSR Amp and Filter Envelopes.
FX section
This section include 6 FX. Every FX can be used or disabled with knob On/Off. FX elements: Phaser, Limiter, Distortion, Chorus, Delay and Reverb.
